HIPER II Flushing bypass valve complete with insulation

Technical Specification

• Max Inlet Pressure (static): 16 Bar
• Min Inlet Pressure (dynamic): 0.2 Bar
• Max Inlet Temperature: 85°C
• Inlet Connections: 3/4" MBSP
• Outlet Connections: 3/4" FBSP

Dimensions

*All dimensions in mm

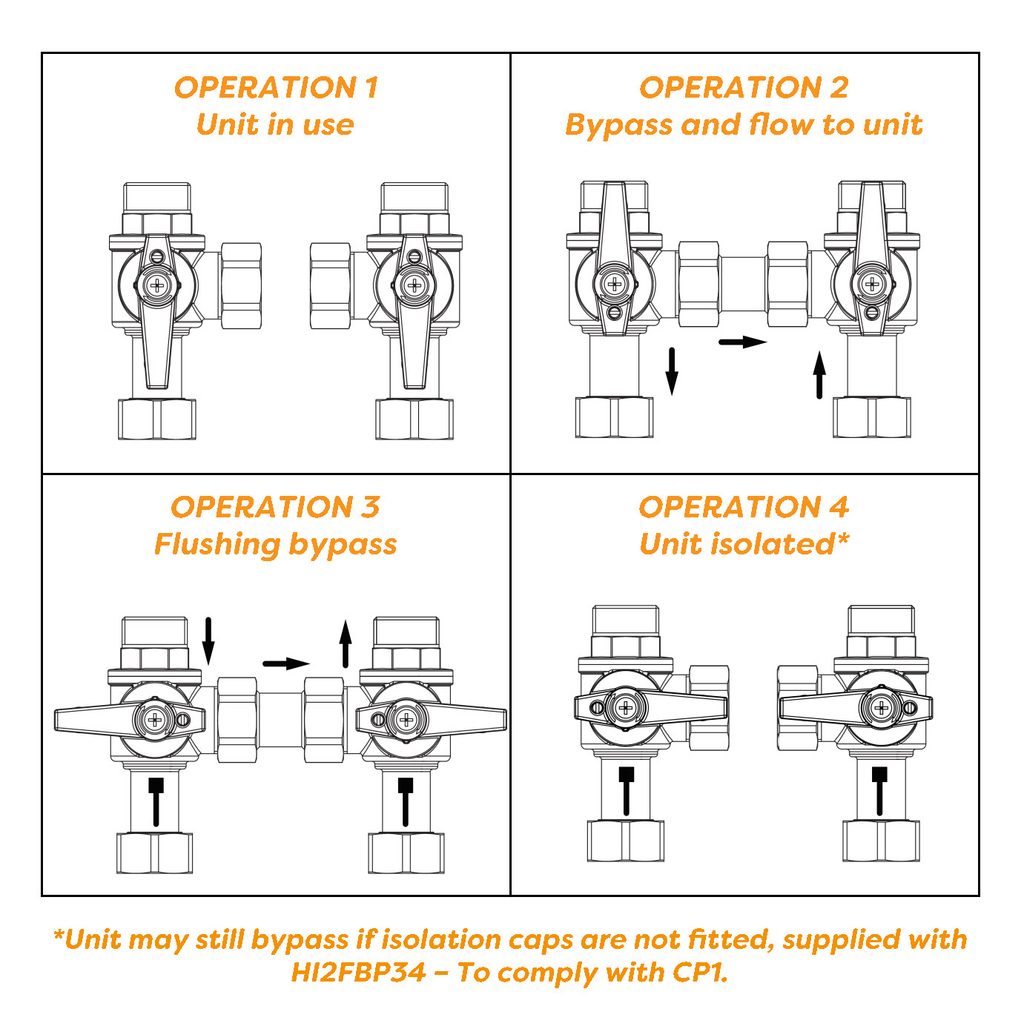

Function

Additional Information

• Multi function control valves
• Allow’s unit isolation + flushing bypass
• Full flow internal bore
• Lockable handle to prevent any unathorised operation
• Removable flushing connector
• Supplied as standard fully insulated
